Vertical Knock Out Drums vs Horizontal: Key Differences Explained

 It is vital to protect downstream equipment in the world of oil and gas processing. For this it is very important to ensure efficient gas separation. One piece of equipment that plays a major role in this process is the knock out drum. But when it comes to choosing between a vertical knock out drum and a horizontal knock out drum, many engineers and plant managers often ask: Which one is better for my application?

When you finish this blog, you will be very sure about the ideal applications for both types of knockout drums, and this will help you make a more informed choice. Let’s go right ahead.

What Is a Knock Out Drum?

Before diving into the comparison, let’s take a quick look at what a knock out drum does.

A knock out drum is a vessel designed to remove entrained liquids (like water or hydrocarbons) from a gas stream. This process of gas separation is essential for preventing damage to compressors, turbines, and other equipment.

Knockout drums come in two main orientations:

  • Vertical Knock Out Drum
  • Horizontal Knock Out Drum

Each has its own strengths, limitations, and best-use scenarios.

Vertical Knock Out Drums: Compact and Efficient

A vertical knock out drum is a cylindrical vessel standing upright. It uses gravity and the velocity drop of the incoming gas stream to allow heavier liquid droplets to settle at the bottom.

Key Features:

  • Smaller footprint: Great for locations where the space is limited
  • Better for slugging: Can handle intermittent surges of liquid more effectively
  • Efficient droplet separation: Longer gas flow path enhances liquid removal.

Why a vertical knockout drum can be your choice of knockout drum:

  • Ideal for upstream oil and gas applications
  • Better drainage of separated liquids
  • It is easier to install in tight layouts or offshore platforms.

Having said these, we must also draw your attention to the fact that a vertical knockout drum has only a limited capacity to handle high volume gas. Since the vessel is tall, it may require platforms or ladders for maintenance.

Horizontal Knock Out Drums: High Capacity Performers

A horizontal knock out drum, as the name suggests, lies on its side. This design increases surface area and residence time, making it suitable for processing larger gas volumes with relatively low liquid content.

Key Features:

  • Larger internal volume for gas separation
  • Greater liquid retention time due to extended horizontal length
  • Typically includes baffles or mist eliminators to boost performance.

Why a horizontal knockout drum can be your choice of knockout drum:

  • Excellent for midstream and downstream applications
  • Ideal when liquid load is consistent and low
  • Better suited for high-flow gas separation.

On the other hand, a horizontal knockout drum may not work well for you because it requires more horizontal space and it is less effective in handling sudden surges and slugs of liquid.

Knockout Drum Design: What Engineers Consider

There are several factors to consider whether you are looking for a vertical or horizontal knockout drum. The primary ones are listed below:

  • Gas and liquid flow rates
  • Operating pressure and temperature
  • Physical space available
  • Droplet size distribution
  • Separation efficiency required

Both designs may be fitted with internals such as below. It is however important to note that these internals are often customized based on the orientation of the drum.

  • Inlet deflectors (to reduce momentum)
  • Mesh pads or vane packs (to coalesce fine droplets)
  • Demisters (to catch small liquid particles)

Gas Separation Performance: Which One is Better?

Now, let’s talk about what really matters — performance.

  • Vertical knock out drums tend to excel at separating larger liquid droplets, thanks to the extended vertical gas path and gravitational pull.
  • Horizontal knock out drums offer higher volume capacity. This makes them better for applications with continuous gas flow and low liquid entrainment.

Cost Implications: Not Just About Size

Cost isn’t just about initial purchase. It includes:

  • Installation
  • Footprint optimization
  • Operational efficiency
  • Maintenance requirements

Generally:

  • Vertical drums might cost less for small to medium operations.
  • Horizontal drums may be more cost-effective for large-scale plants due to their capacity and efficiency.

Choosing the Right Drum for Your Process

Here’s a quick checklist to help guide your decision:

  • Need high liquid handling capacity, then go for a vertical knock out drum
  • Need to manage high gas flow, then choose a horizontal knock out drum
  • Facing space constraints, vertical design is your friend
  • Want easier internal access, then the horizontal drum wins
  • Planning for offshore use, the vertical knockout drum should be your choice
  • Processing clean gas with minor liquids, then horizontal works well

Both vertical knock out drums and horizontal knock out drums have their unique place in design. The choice depends heavily on your application’s gas separation needs, site constraints, and operational goals.

The best approach? Partner with an experienced equipment provider or process engineer who can help evaluate your flow data, space limitations, and performance expectations.

Whether you go vertical or horizontal, a well-designed knock out drum will ensure smoother operations, better equipment protection, and improved process reliability in your plant.

Do you need help choosing the right knockout drum for your plant? Reach out to experienced process engineers or filtration experts at Sungov Engineering who understand both science and the on-ground realities. Efficient gas separation starts with informed decisions!

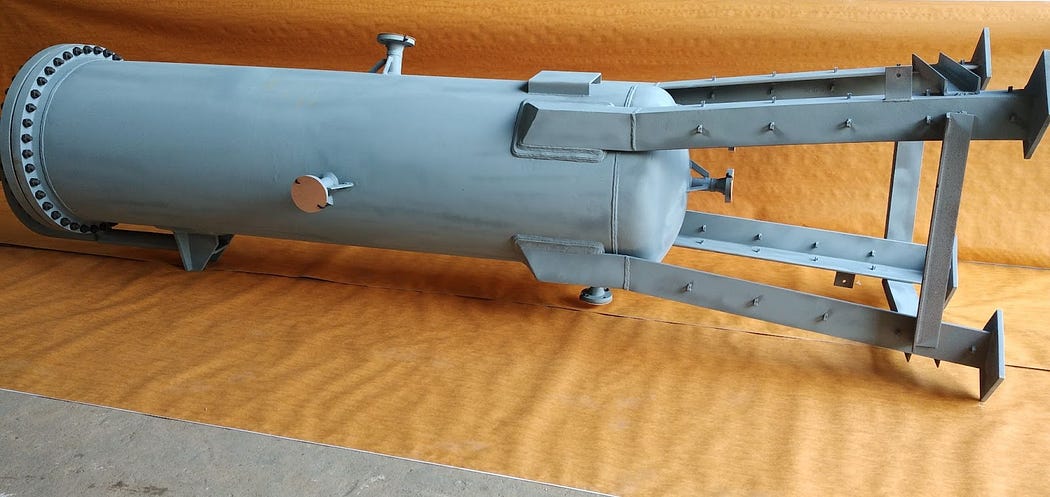

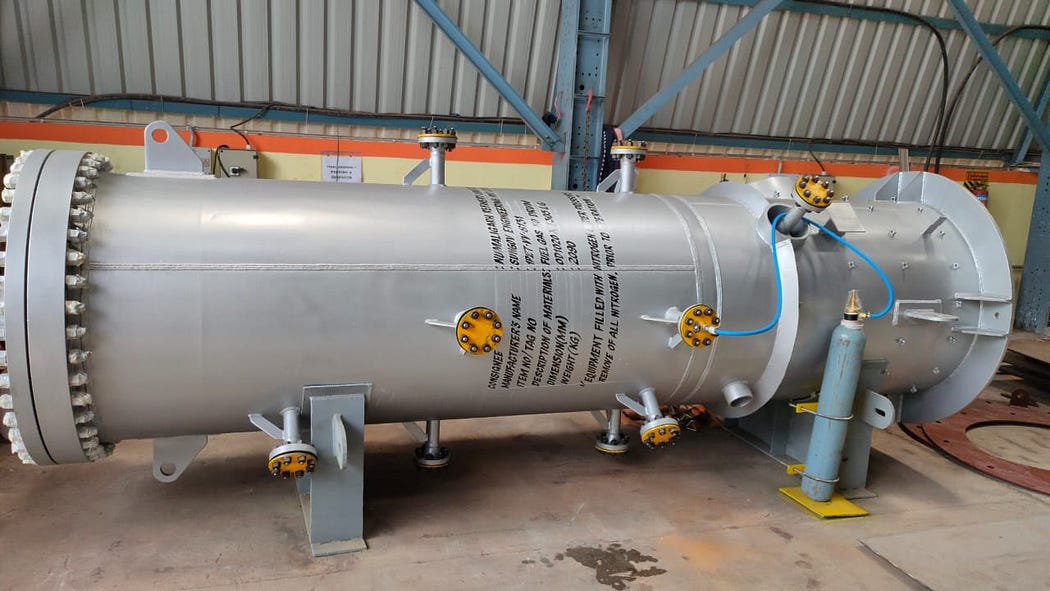

The location of installation of these Knockout drums are in India.
